Dump Truck for Sale
7-Axle Super Dump on New International HX520
7-Axle Super Dump on New International HX520
Walkaround
New Super
Dump
Dump
Description

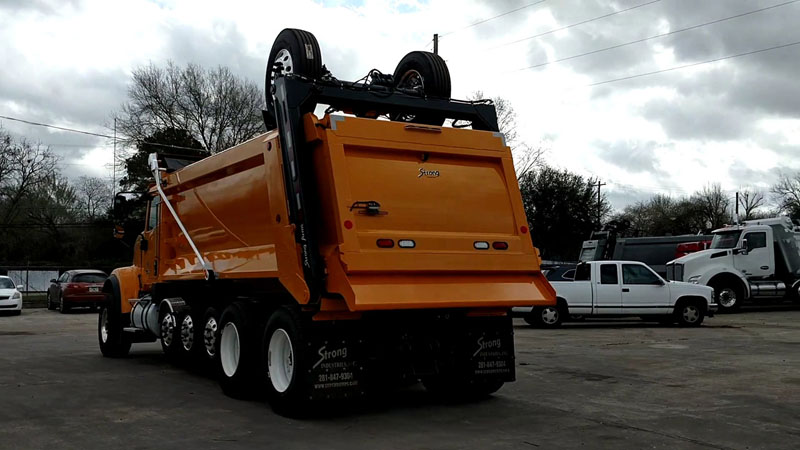

This dump truck for sale is a 7-axle Super Dump (Super 18) on a new International HX520, with 485 HP Cummins X15 engine and Allison Auto transmission. The truck and dump body are both orange. This dump truck is good for 81k lbs GVW under the federal bridge formula (Interstate max = 80k lbs), allowing over 24 Ton payloads.| Dump Truck Type | Total Axles | Pusher Axles | Trailing Axle | Tare Weight** | Max Weight* | Payload* ** |
|---|---|---|---|---|---|---|
| Super Dump / Super 18 | 7 | 3 (Hend 8k) | Strong Arm | 31,000 lbs | 80,000 lbs | 24.5 TONS |
| * Max weight and payload are based on the Federal Bridge Formula (FBF) | ||||||
| ** May vary with truck specifications | ||||||
| Truck | |
|---|---|
| Year | 2026 |
| Make | International |
| Model | HX520 |
| Condition | New |
| Mileage | 528 mi |
| Color | Orange |
| Engine Make | Cummins |
| Engine Model | X15 |
| Horsepower | 485hp |
| Engine Brake | Yes |
| Transmission | Allison Auto |
| Suspension | Hendrickson Haulmaax |
| Wheelbase | 262 in |
| Wheels | Polished Aluminum / Painted Steel |
| Front Tires | New 425/65R22.5 |
| Rear Tires | New 315/11R22.5 |
| Notes | |
| Dump Body | |
|---|---|
| Make | Strong |
| Model | Super Dump |
| Condition | New |
| Color | Orange |
| Length | 17 ft 6 in |
| Side Wall | 3/16" Steel Hardox 450 |
| Floor | 3/16" Steel Hardox 450 |
| Front Wall | 3/16" Steel Hardox 450 |
| Tailgate | 3/16" Steel Hardox 450 |
| Height | 60 in |
| Notes | Strong Super Dump body latest design. Built for durability with maximum payload. |
| Options Equipped |
|---|
|
| Note: other options can be added |
